ColorStar Impressions HD Logo Mat

Product Number 973
ColorStar Impressions HD mats feature your custom logo or artwork digitally printed in high definition on eco-friendly PET (polyethylene terephthalate) carpet

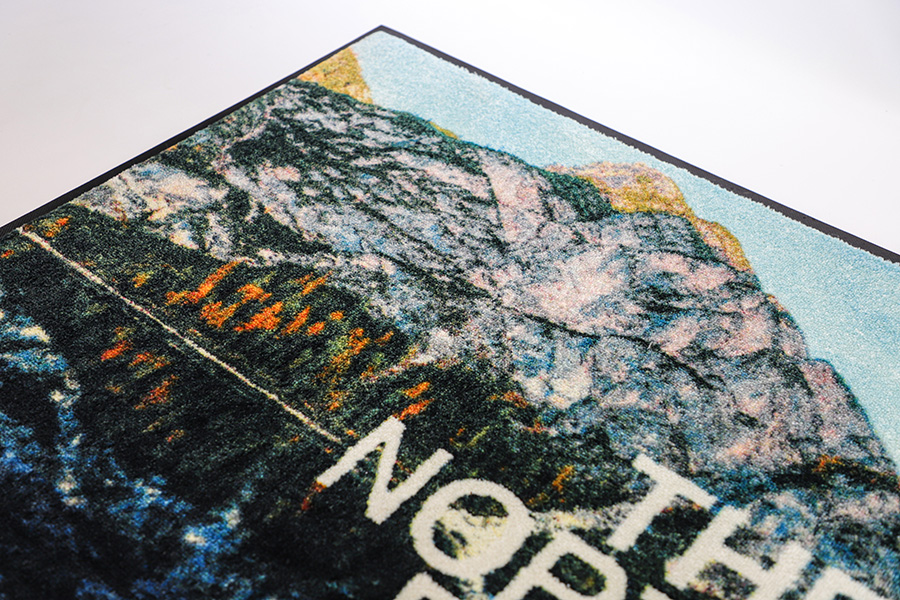

  • Photographic-Quality Print - Logos and designs are digitally printed at 76 dpi on 32-ounce per square yard carpet, making fine details, shading, and 3D images achievable
  • Eco-Friendly - PET (polyethylene terephthalate) carpet surface contains 100% recycled content reclaimed from plastic
  • Fade Resistant - PET yarn has excellent color-fastness and is resistant to fading from repeated washing/cleaning
  • Stain Resistant - PET yarn is naturally resistant to staining
  • Choose from 150 standard colors
  • Available with choice of SBR (48 mil) or nitrile rubber (52 mil, 65 mil, 90 mil, or 100 mil) backing
  • Commercially launderable (when backed with nitrile rubber)

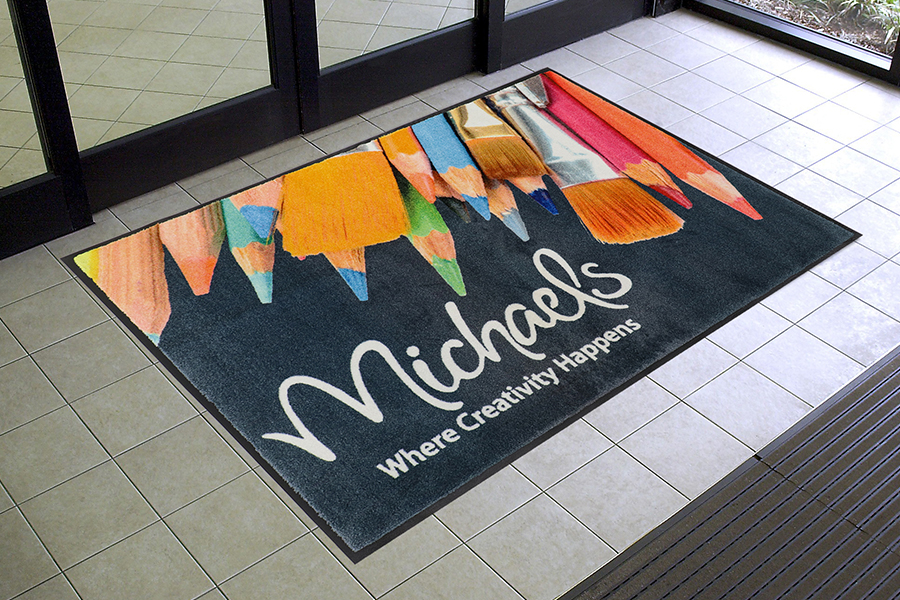

Recommended for indoor commercial use at entryways, in lobbies, at front desks or anywhere you want to display your company logo, slogan, artwork, or message to customers/visitors or employees.

2' x 3' (24" x 35")
3' x 4' (35" x 47")
3' x 5' (35" x 59")
3' x 10' (35" x 119")
4' x 6' (45" x 69")
4' x 8' (45" x 95")
5' x 8' (58" x 95")
5' x 10' (58" x 119")
6' x 10' (68" x 119")
6' x 12' (68" x 143")

Special sizes available in widths of 3' (35"), 4' (45"), 5' (58"), or 6' (68") and lengths up to 40'.

Please note, mat sizes are approximate as rubber shrinks and expands in conjunction with temperature and time. Tolerable manufacturing size variance is 3-5%.

SURFACE
Material: PET (polyethylene terephthalate) printed/disperse-dyed yarn
Weight: 32 ounces/yard2
Construction: Cut pile
Substrate: Freudenberg LUTRADUR┬« polyester spunbond non-woven fabric 3.8 ounces/yard2 (130 grams per square meter)

BACKING OPTIONS
Material: Nitrile rubber - smooth, universal cleated, full cleated, or MegaHold
Thickness Options:
Standard duty 52-mil (body thickness 52-mil; border thickness 94-mil)
Medium duty 65-mil (body thickness 65-mil; border thickness 107-mil)
Heavy duty 90-mil (body thickness 90-mil; border thickness 90-mil)
MegaHold 100-mil (body thickness 100-mil; border thickness 100-mil)

Material: SBR rubber - smooth, universal cleated, or full cleated
Thickness: 48-mil (body thickness 48-mil; border thickness 90-mil)

Overall Mat Thickness: 3/8 inch (0.375")

STANDARDS & TESTING

  • Passes flammability tests EN ISO 11925-2 (2010) and EN ISO 9239-1 (2010)
  • Certified high-traction by the National Floor Safety Institute (NFSI)
  • Passes BS 4790 (1987) determination of the flammability of textile floor coverings
  • AATCC Stain Resistance Pile Floor Covering: Grade 10, no staining

ColorStar Impressions HD logo mats are produced using a layering process of color.  Colors are matched to our standard palette of 150 colors.  Please refer to this product's Price List for details on the one-time PMS color matching set-up fee. A maximum of 4 PMS colors may be matched per design.

Minimum Text Height: 1" for serif fonts and 1/2" for sans serif fonts
Minimum Line Thickness: 1/8" except for white & light colors which should be at least 1/4"
These text requirements are for general use; however, special fonts and very thin letter forms may need to be made larger or thicker and will be approached on a case-by-case basis.

Light background colors should be avoided due to their tendency to show dirt on the mat more than a darker or neutral tone.  We also advise against the use of screens, tints, and transparencies in the design because they are not easily converted to our color palette.

Mat Size                             Maximum Imprint Area
2' x 3' (24" x 35")                   23" x 34"
3' x 4' (35" x 47")                   34" x 46"
3' x 5' (35" x 59")                   34" x 58"
3' x 10' (35" x 119")                  34" x 118"
4' x 6' (45" x 69")                   44" x 68"
4' x 8' (45" x 95")                   44" x 94"
5' x 8' (58" x 95")                   57" x 94"
5' x 10' (58" x 119")                  57" x 118"
6' x 10' (68" x 119")                  67" x 118"
6' x 12' (68" x 143")                  67" x 142"

ColorStar Impressions HD mats can be cleaned in several different ways:

  • They can be commercially laundered (see Laundering Instructions)
  • Vacuumed regularly (daily in high-traffic areas; weekly in lower-traffic applications)
  • Cleaned with an extractor, or hosed off as necessary to remove heavy soil
  • Hang to dry

Mats should always be dry before they are placed back in service.

ColorStar Impressions HD mats that are backed with nitrile rubber can be commercially laundered.  Proper laundering will prolong the life of the mat by preventing the buildup of soil and soap residue. ColorStar Impressions HD mats are manufactured using PET Yarn.  PET is a type of polyester that needs to be processed using the proper chemistry to obtain optimal results. When PET products are exposed to oils, the yarn has an affinity to retain these oils.  We would recommend starting with 2 oz. of detergent per cwt., and 1 oz. of alkali per cwt, and add 4-oz. of hydrogen peroxide.  The level of chemicals required will depend on the type of accounts you service.  Please consult with your chemical supplier if you have additional questions or concerns.

  1. Flush 2-3 minutes, medium water level, 120 degrees F (49 degrees C)
  2. Flush (optional) 2-3 minutes, medium water level, 120 degrees F (49 degrees C)
  3. Break 5-10 minutes, high water level, 120 degrees F (49 degrees C)
  4. Rinse 2 minutes, high water level, cold
  5. Rinse 2 minutes, high water level, cold
  6. Extract (low speed) 1-2 minutes
  7. Shake out (rotate wheel at wash speed with drain open) 1 minute
  8. Extract (high speed max - 250 Gs) 3-5 minutes
  9. Dry 5-10 minutes, 180 degrees F (82 degrees C) basket temp.
  10. Cool down 5 minutes
  11. Lay mats flat following removal from washer or dryer. Allow to cool before rolling.

For heavy soil mats, increase temperature to max 140 degrees F (60 degrees C).  Break should not exceed pH of 9.5; use low pH non-ionic detergents.  Do not over-dry mats; basket temperature of dryer should not exceed 180 degrees F (82 degrees C).  If mats are not dried, final rinse can be increased to 140 degrees F (60 degrees C).  This will reduce moisture retention following extraction.
