Floor Impressions Mat

Product Number 3425

Floor Impressions mats feature your custom logo or artwork overlaid onto 3/16" solid nitrile rubber. Multi-color images are created by molding a digitally printed polymetric material into the durable nitrile rubber surface of the mat.


  • Photographic-Quality Print - Logos and designs are digitally printed making fine details, shading, and 3D images achievable

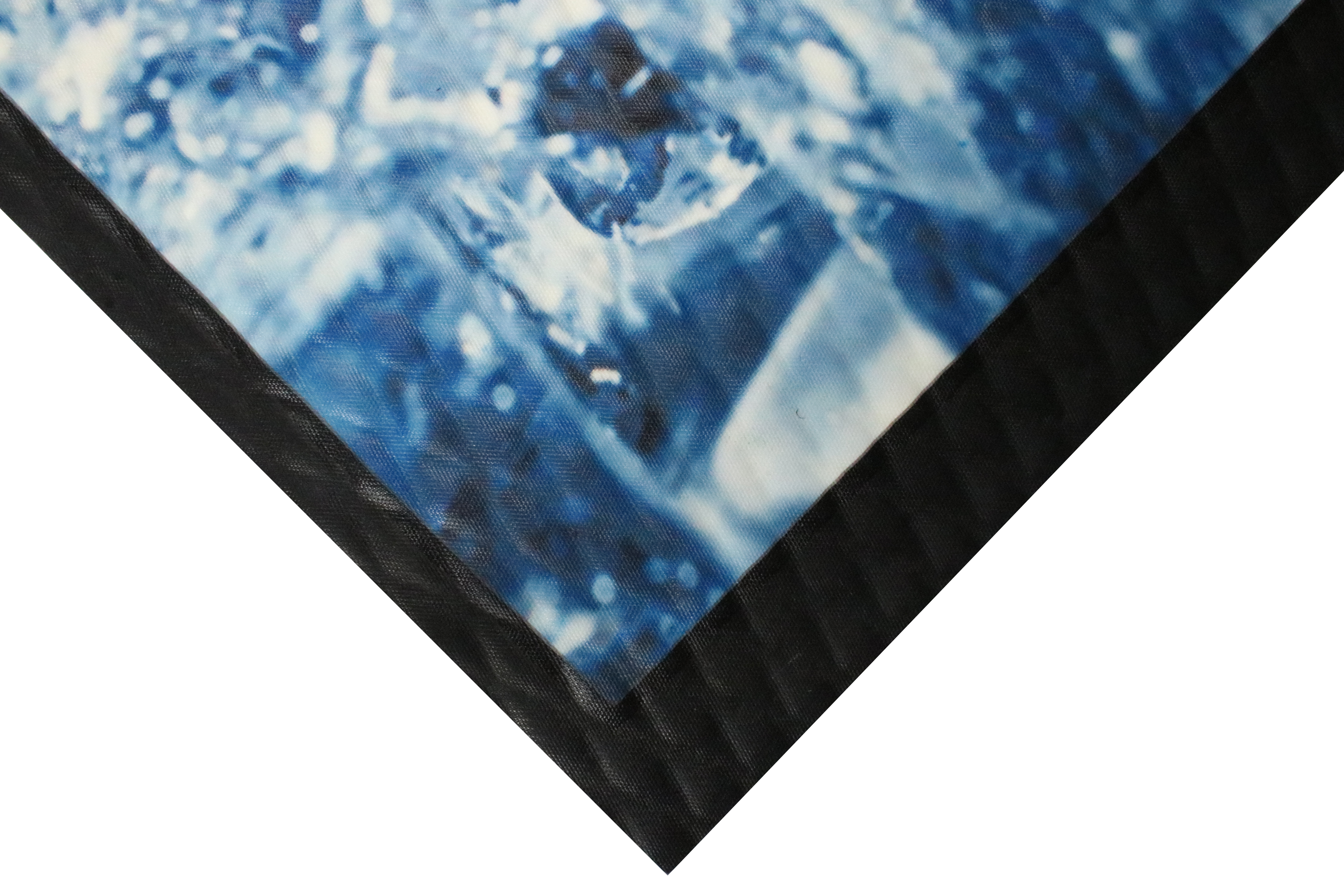

  • Safe - Edges will not crack or curl and provide a safe transition from floor to mat; mats provide floor protection
  • Easy to Clean - Lightweight flexible design ensures easy handling and cleaning

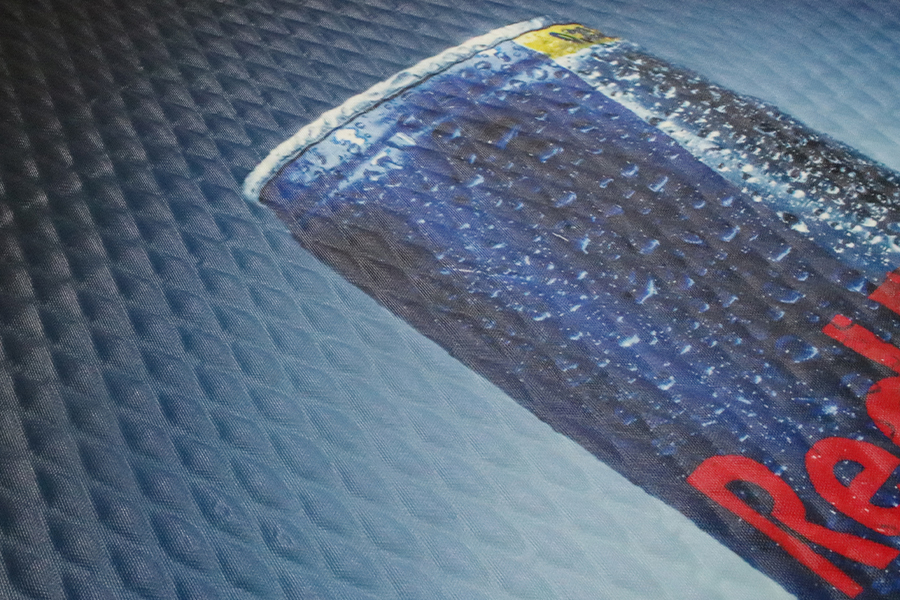

  • Features 3/16" thick nitrile rubber with either a diamond surface or a smooth surface

2' x 3' (22" x 34")
3' x 4' (34" x 46")
3' x 5' (34" x 58")
3' x 8' (34" x 94")
3' x 10' (34" x 118")
4' x 6' (46" x 69")
Available in custom sizes with widths of 3' (34") and lengths up to 117"; and with widths of 4' (46") and lengths up to 93" long.

Available in diamond or smooth surface, however, smooth is limited to sizes 2' x 3' and 3' x 5'.

Please note, mat size is approximate as rubber shrinks and expands in conjunction with temperature and time. Tolerable manufacturing size variance is 3-5%.

CONSTRUCTION
Material: Nitrile rubber
Logo/Image Material: Polymetric film

OVERALL MAT THICKNESS: 3/16 inch (0.1875" )

STANDARDS & TESTING

  • Passes flammability standard DOC-FF1-70

Floor Impressions are all rubber mats that feature a digital imprint. A digital imprint allows for much more detail; and bright, vivid colors can be easily achieved. PMS colors may be matched for an additional fee.*  Floor Impressions mats are available in two pattern options - diamond and smooth.  Smooth is only available up to size 3' x 5'.

Minimum Text Height: 1/4" for diamond top and 1/8" for smooth top (includes lowercase text)
Minimum Line Thickness: 1/16"
These text requirements are for general use; however, special fonts and very thin letter forms may need to be made larger or thicker and will be approached on a case-by-case basis.

The background color of the imprint area should not be set to white.  It is difficult to keep the logo clean through the manufacturing process.

Solid color designs are not available and cannot be produced. The print area must be comprised of text and/or logo.

Powerclips in CorelDraw files must be avoided.

Mat Size                      Imprint Area
2' x 3' (22" x 34")         21" x 33"
3' x 4' (34" x 46")         33" x 45"
3' x 5' (34" x 58")         33" x 57"
3' x 8' (34" x 94")         33" x 93"
3' x 10' (34" x 118"      33" x 117"
4' x 6' (46" x 69")         45" x 68"
3' (34") width                33" x up to 117"
4' (46") width                45" x up to 93"

*We will do our best to match a PMS color, however, color matching can be extremely challenging. Although we can get close, color is never an exact science and variations will occur. An exact color match is vulnerable to many factors, including the fact that we use a hot press to combine the rubber surface and cushion backing. Heat from the press often causes the color to lighten. Typically, we can get close to most PMS colors, but the final color may be a few shades off. For the PMS color to be as close as possible, we require additional time to create the proof sketch. Specific PMS colors may be matched for a one-time additional fee of $270.38 per PMS color.  A maximum of 4 PMS colors may be used in any given design.

Floor Impressions mats can be cleaned by using detergent with a neutral pH, and rinsing with a hose.  Mats should be laid flat or hung to dry.
