Switchboard (Non-Conductive) Matting

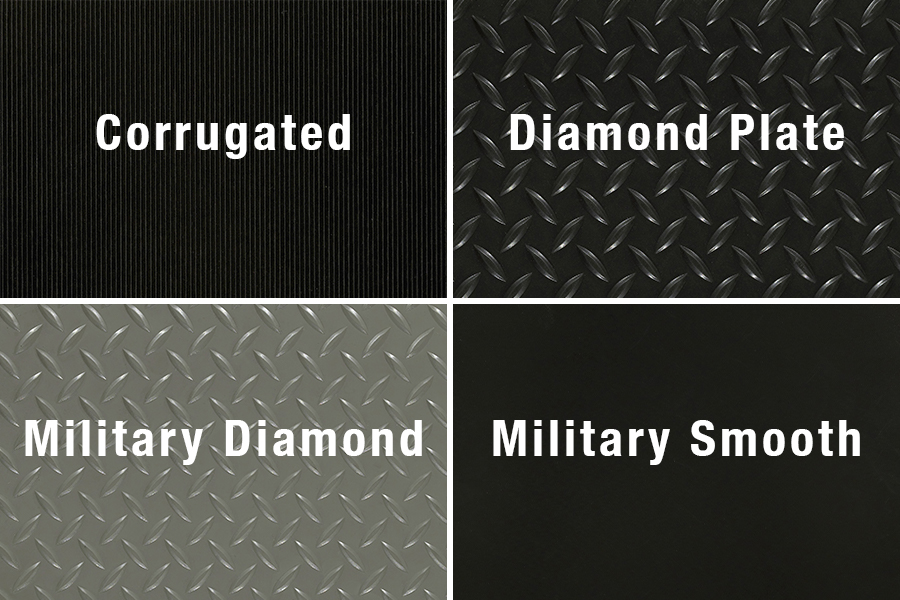

Product Number 781 (corrugated), 782 (military smooth), 783 (diamond plate), 784 (military diamond)
Switchboard mats are non-conductive mats designed for use in high voltage areas.

Corrugated Switchboard - Designed to protect workers from electrical shock by insulating against high voltage

  • Type II, Class 2 (meets additional testing for flame, oil, and ozone resistance)
  • Conforms to ASTM D-178-01 testing
  • Tested dielectric strength is 30,000 volts
  • Maximum use voltage is 17,000 volts
  • 1/4", non-conductive

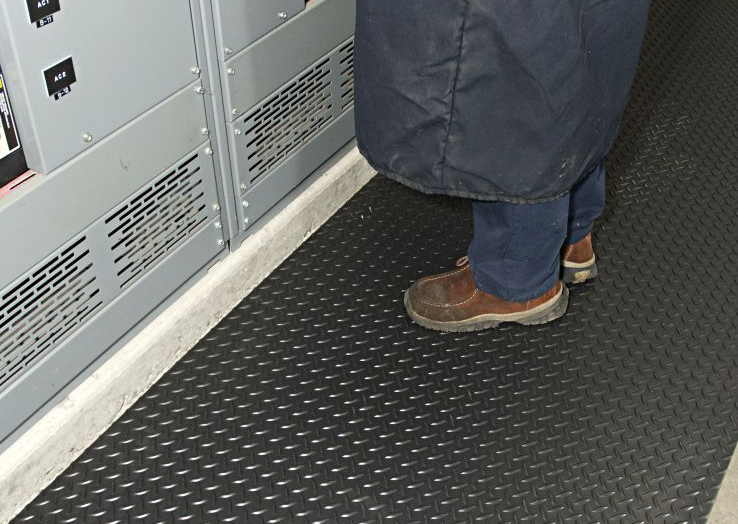

Diamond Plate Switchboard - Designed to protect workers from electrical shock by insulating against high voltage

  • Type II, Class 2 (meets additional testing for flame, oil, and ozone resistance)
  • Conforms to ASTM D-178-01 testing
  • Tested dielectric strength is 30,000 volts
  • Maximum use voltage is 17,000 volts
  • 1/4", non-conductive

Military Diamond Switchboard - Designed to protect workers in high voltage areas

  • Meets strict military specification standard MIL-DTL15562G
  • Type III - PVC runner
  • Dielectric strength: the floor covering shall not fail at less than 30,000 volts when tested as specified - MIL-DTL15562G
  • 3/16", non-conductive

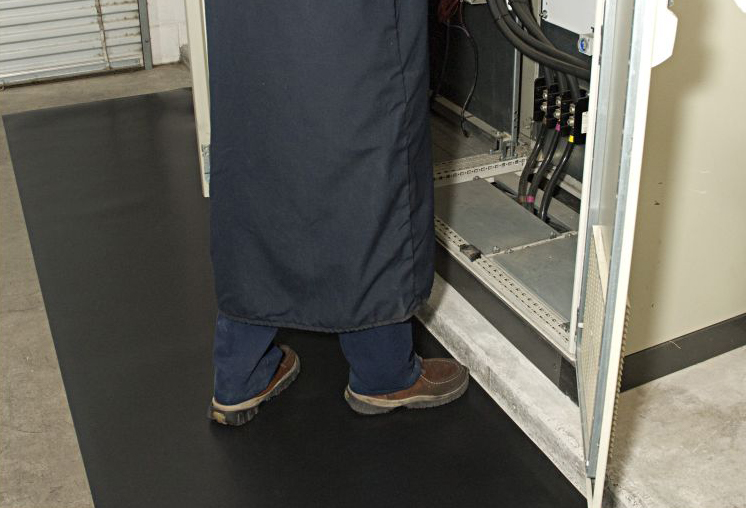

Military Smooth Switchboard - Designed to protect workers in high voltage areas

  • Meets strict military specification standard MIL-DTL15562G
  • Type II - PVC runner
  • Dielectric strength: the floor covering shall not fail at less than 30,000 volts when tested as specified - MIL-DTL15562G
  • 1/8", non-conductive

Corrugated Switchboard
24" x 75'
36" x 75'
48" x 75'

Diamond Plate Switchboard
36" x 75'

Military Diamond Switchboard
36" x 75'

Military Smooth Switchboard
36" x 75'

Corrugated & Diamond Plate Switchboard Matting

SURFACE

Material: PVC (vinyl)
Thickness: 1/4 inch (0.25")

STANDARDS & TESTING

  • Passes electrical proof test ASTM D178 (Min. 20,000 V for one minute)
  • Passes dielectric breakdown test ASTM D149 (Min. 30,000 V)
  • Passes O3 resistance test method B ASTM D178 (any visual degradation)
  • Tensile strength ASTM D412 DIE C (Minimum 700 PSI): 1,318 PSI, PASS
  • Elongation ASTM D412 DIE C (Minimum 250%): 317%, PASS
  • Tension set ASTM D412 DIE B (Maximum 0.50 in.): 0.4827 in., PASS
  • Moisture absorption ASTM D570 (Maximum increase 3%): 0.09%, PASS
  • Accelerated aging ASTM D573 (Minimum 50% of original tensile strength): 1,363 PSI (103% of original tensile strength), PASS
  • Flame resistance ASTM D178 Appendix (Maximum 0.5 in./12.7mm after 30 seconds): 0.12 mm/s, PASS
  • Oil resistance ASTM D471 (Maximum volume increase 4%): 0.04%, PASS

Military Diamond Switchboard Matting

SURFACE

Material: PVC (vinyl)
Thickness: 3/16 inch (0.1875")

STANDARDS & TESTING

  • Voltage Test MIL-DTL-15562G, Min. 15,000V for 1 Minute, Pass
  • Dielectric Strength Test MIL-DTL-15562G, Min. 30,000V, Pass
  • Visual/Dimensional Exam MIL-STD-407, Any Visual Degradation, Pass
  • Tensile Strength ASTM D412 DIE C, Min. 800PSI: 1800PSI, Pass
  • Ultimate Elongated ASTM D412 Die C, Min 75%: 200%, Pass
  • Hardness ASTM D2440, 95 +/-5 (SHORE A): 90, Pass
  •  Critical Radiant Flux, ASTM E648, Min 0.45 W/CM2:: 0.81 W/CM2, Pass
  • Smoke Density ASTM E662, Max 450: 400, Pass
  • Flexibility Test FED-STD-501 Method 3111 Shall Pass, Pass
  • Dimensional Stability Test ASTM D1204, +/-0.020 IN/FT: 0.009 IN/FT, Pass
  • Gloss Test ASTM D2457, 50: 70, Pass
  • Color FED-STD-595, As Specified, Pass

Military Smooth Switchboard Matting

SURFACE

Material: PVC (vinyl)
Thickness: 1/8 inch (0.125")

STANDARDS & TESTING

  • Voltage Test MIL-DTL-15562G, Min. 15,000V for 1 Minute, Pass
  • Dielectric Strength Test MIL-DTL-15562G, Min. 30,000V, Pass
  • Visual/Dimensional Exam MIL-STD-407, Any Visual Degradation, Pass
  • Tensile Strength ASTM D412 DIE C, Min. 800PSI: 1900PSI, Pass
  • Ultimate Elongated ASTM D412 Die C, Min 100%: 230%, Pass
  • Hardness ASTM D2440, Min 75 (SHORE A): 80, Pass
  •  Critical Radiant Flux, ASTM E648, Min 0.45 W/CM2:: 0.81 W/CM2, Pass
  • Smoke Density ASTM E662, Max 450: 400, Pass
  • Dimensional Stability Test ASTM D1204, +/-0.020 IN/FT: 0.0771 IN/FT, Pass
  • Color FED-STD-595, As Specified, Pass

Switchboard mats can be cleaned using the instructions below:

  • Scrubbing with a deck brush (when needed)
  • Using detergent with a neutral pH
  • Rinsing with a hose or pressure washer
  • Mat should be laid flat or hung to dry

Always make sure the mat is dry before placing it back in service.
