Hog Heaven Impressions Logo Mat

Product Number 3422
Hog Heaven Impressions mats feature the same excellent anti-fatigue qualities of a standard Hog Heaven mat but can be customized with your logo or message.
  • Comfortable - 5/8" high-density nitrile-blended cushion helps eliminate pressure to the lower back and legs, providing superior comfort
  • Safe - Certified high-traction by the National Floor Safety Institute (NFSI); edges will not crack or curl and provide a safe transition from floor to mat
  • Durable - Nitrile-blended cushion provides years of useful service life; cushion is molded, not glued, to the nitrile rubber surface so it will not separate
  • Versatile - Nitrile rubber surface is welding safe, grease/oil proof, and chemical resistant*

*Please note that the polymetric film with your logo/imprint will be less resistant to elements than the mat.

Recommended for indoor use in commercial and industrial settings where branding or messaging is required/preferred along with the anti-fatigue benefits of a Hog Heaven mat. Excellent for customization with a company logo, slogan, or safety and quality reminders.

2' x 3' (24" x 33")
3' x 5' (32" x 58")
4' x 6' (46" x 69")

Please note, mat sizes are approximate as rubber shrinks and expands in conjunction with temperature and time. Tolerable manufacturing size variance is 3-5%.

SURFACE
Material: Nitrile rubber
Logo/Image Material: Polymeric film

CUSHION
Material: High-density, closed-cell nitrile/PVC-blended foam

Overall Mat Thickness: 5/8 inch (0.6250" )

STANDARDS & TESTING

  • Passes flammability standard DOC-FF1-70
  • Certified high-traction by the National Floor Safety Institute (NFSI)
  • ESD Rating of: Electrically Conductive
  • Compression Deflection:
         47.8% at 20 psi
         61.6% at 40 psi
  • ASTM C1028-96 static coefficient of friction:
         Dry 0.79
         Wet 0.75
  • Melt point over 500 degrees F. Tested at temperatures up to 1800 degrees F for welding/slag resistance (specific results from test available upon request)

A digital print on polymetric film allows customers to customize the Hog Heaven anti-fatigue mat with logos, images, and messages. Please refer to this product's Price List for details on the one-time PMS color matching set-up fee. A maximum of 4 PMS colors may be matched per design.*

Minimum Text Height: 1/4"
Minimum Line Thickness: 1/16"
These text requirements are for general use; however, special fonts and very thin letter forms may need to be made larger or thicker and will be approached on a case-by-case basis.

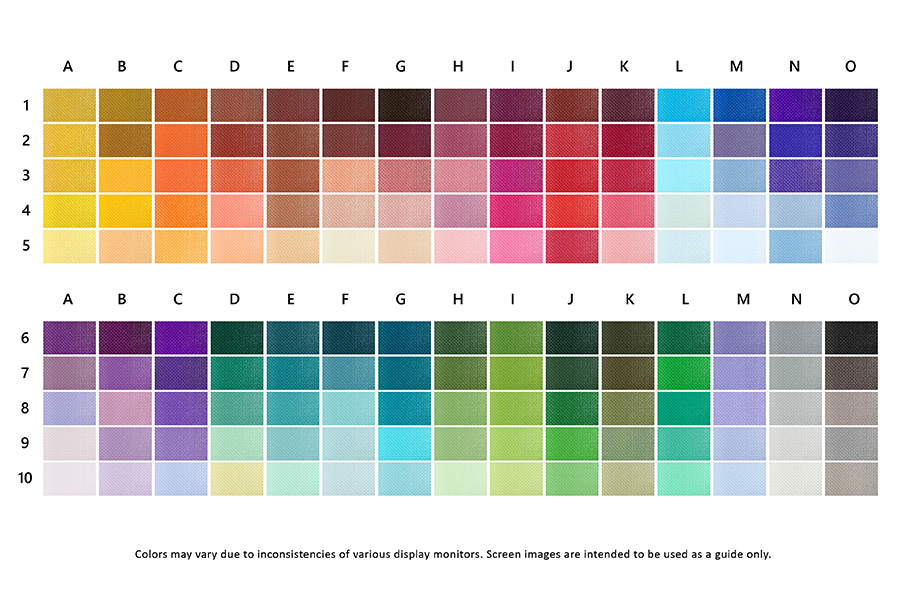

White is prone to discolor and cannot be used as the background or any part of the imprint area. The product's color palette offers three light colors to use in place of White:  F5, N9 and N10. The background color of the imprint area should not be set to these light colors. It is difficult to keep the logo clean through the manufacturing process.

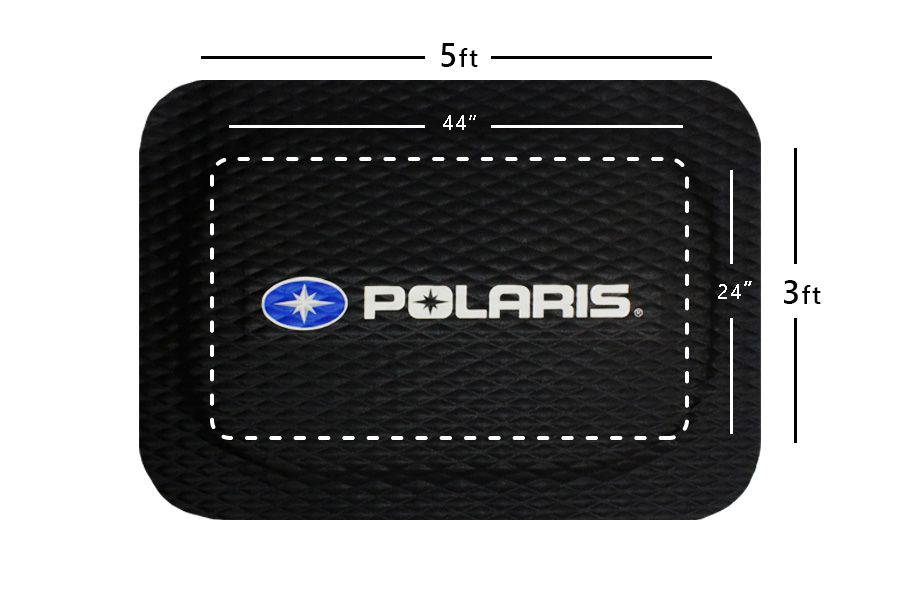

Mat Size                             Maximum Imprint Area
2' x 3' (24" x 33")                    12" x 22"
3' x 5' (32" x 58")                    24" x 44"
4' x 6' (46" x 69")                    36" x 50"

*We will do our best to match a PMS color, however, color matching can be extremely challenging.  Although we can get close, color is never an exact science and variations will occur.  An exact color match is vulnerable to many factors, including the fact that we use a hot press to combine the rubber surface and cushion backing.  Heat from the press often causes the color to lighten. Typically, we can get close to most PMS colors, but the final color may be a few shades off.  For the PMS color to be as close as possible, we require additional time to create the proof sketch.

Hog Heaven Impression mats can be cleaned by using detergent with a neutral pH and rinsing with a hose. Mats should be laid flat or hung to dry.

Always make sure the mat is dry before placing it back in service.
