Action Mat

Product Number 80

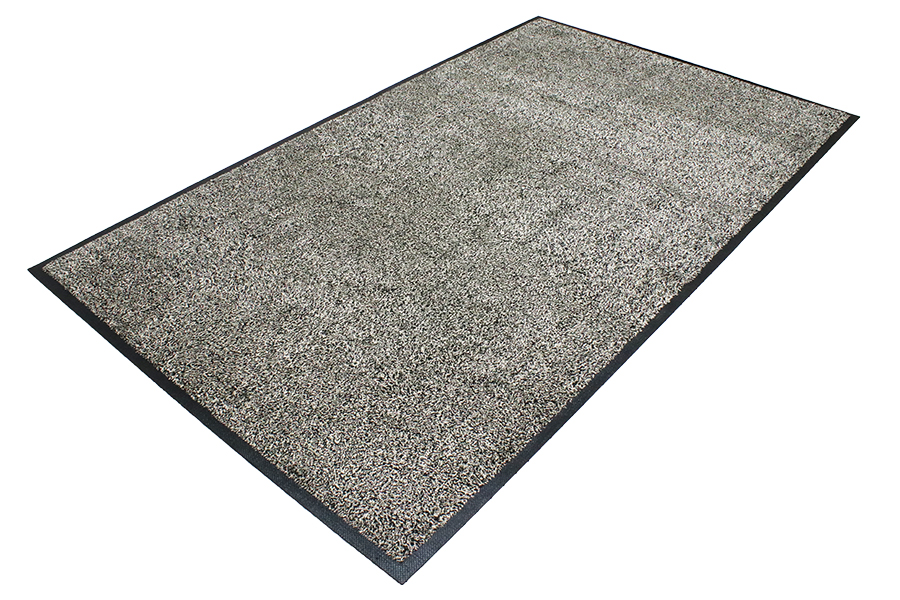

Action Mats are ideal for soaking up contaminants such as hydraulic fluid, coolant, water, condensation, oils, and solvents.
  • Constructed with highly-absorbent cotton yarn (20 ounces/square yard)
  • Nitrile rubber backing and borders provide excellent slip-resistance and are grease/oil proof
  • Commercially launderable
  • Available with choice of 52-mil, 65-mil, or 90-mil rubber with smooth, universal cleated, or suction backing

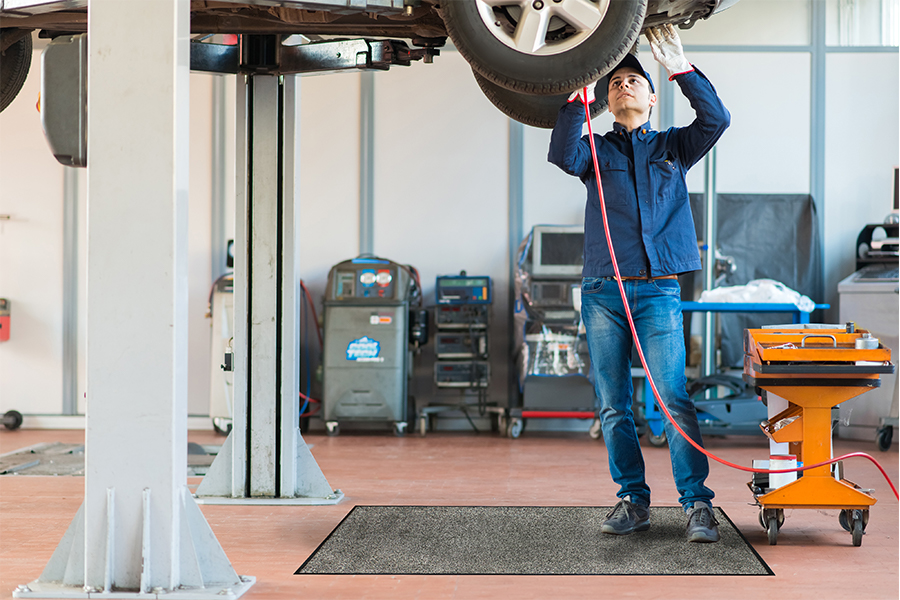

Designed to soak up contaminants and provide extra traction, Actions mats are ideal for use in auto, construction, and other industrial environments where hydraulic fluid, coolant, water, oils, and solvents are present.

2' x 3' (24" x 35")
3' x 4' (35" x 47")
3' x 5' (35" x 59")
3' x 10' (35" x 119")
4' x 6' (45" x 69")
4' x 8' (45" x 95")

Custom sizes are available in 3' (35") and 4' (45") widths.

Please note, mat sizes are approximate as rubber shrinks and expands in conjunction with temperature and time. Tolerable manufacturing size variance is 3-5%.

SURFACE
Material: 100% cotton yarn
Weight: 20 ounces/yard2
Substrate: Woven cotton duck fabric (10.8-ounce/yard2)

BACKING
Material: Nitrile rubber (smooth, universal cleated, or suction)
Thickness:
     Standard 52-mil rubber (body thickness 52-mil; border thickness 94-mil)
     Medium duty 65-mil rubber (body thickness 65-mil; border thickness 107-mil)
     Heavy duty 90-mil (body thickness 90 mil; border thickness 90-mil)

Action Mats can be commercially laundered periodically to remove grease, oil, and dirt.  Depending on the type and quantity of soil, it may be necessary to adjust the formula shown below to increase break time, temperature, and number of rinses to achieve desired results.

To prevent pilling on other mats, Action Mats should not be washed with mats made of nylon or other synthetic carpet yarns.

  1. Flush 2-3 minutes, medium water level, 120 degrees F (49 degrees C)
  2. Optional Flush 2-3 minutes, medium water level, 120 degrees F  (49 degrees C)
  3. Break 5-10 minutes, high water level, 120 degrees F (49 degrees C)
  4. Rinse 2 minutes, high water level, cold
  5. Rinse 2 minutes, high water level, cold
  6. Extract at low speed for 1-2 minutes
  7. Shake out (rotate wheel at wash speed with drain open) for 1 minute
  8. Extract at high speed (250 Gs) for 3-5 minutes
  9. Dry 15-30 minutes, 180 degrees F (82 degrees C) basket temp
  10. Cool down 5 minutes

Insure mats are thoroughly dried to prevent mildew from forming in the cotton yarn.
